Turnstiles & Speed Gates for Dubai Office Towers: Technical Architectural Guide
By SecureNet Services Engineering Team • Published Dubai, UAE
Managing pedestrian flow in commercial high-rise lobbies across Business Bay, DIFC, Downtown Dubai, and Abu Dhabi Global Market (ADGM) requires balancing high-throughput access security with sleek architectural design. In premium corporate towers, entry gates serve as both the first line of defense against unauthorized tailgating and the physical centerpiece of executive visitor reception. This engineering guide details turnstile mechanics, sensor layouts, ADA accessibility requirements, and mandatory UAE Civil Defense fire alarm integration.
Turnstile Form Factors: Technical Comparison for UAE Lobbies
Selecting the appropriate pedestrian barrier depends on peak-hour commuter volume, available lobby floor depth, and architectural aesthetics:
| Barrier Form Factor | Throughput Rate | Standard Passage Width | Anti-Tailgating Sensor Pairs | Best Application | Est. Hardware Cost (AED) |
|---|---|---|---|---|---|
| Optical Swing Speed Gates (e.g. ZKTeco Mars-S1000 / SBTL8000) | 35 – 45 persons / min | 600 mm (Standard) / 900 mm (ADA Wheelchair) | 12 – 24 Pairs Infrared Beams | Corporate headquarters, financial towers, executive lobbies | AED 8,500 – 16,000 / lane |
| Optical Flap Barriers (e.g. ZKTeco Mars-F1000 / FBL6000 Pro) | 30 – 38 persons / min | 550 mm | 8 – 16 Pairs Infrared Beams | Transportation terminals, metro stations, large campus cafeterias | AED 6,800 – 12,000 / lane |

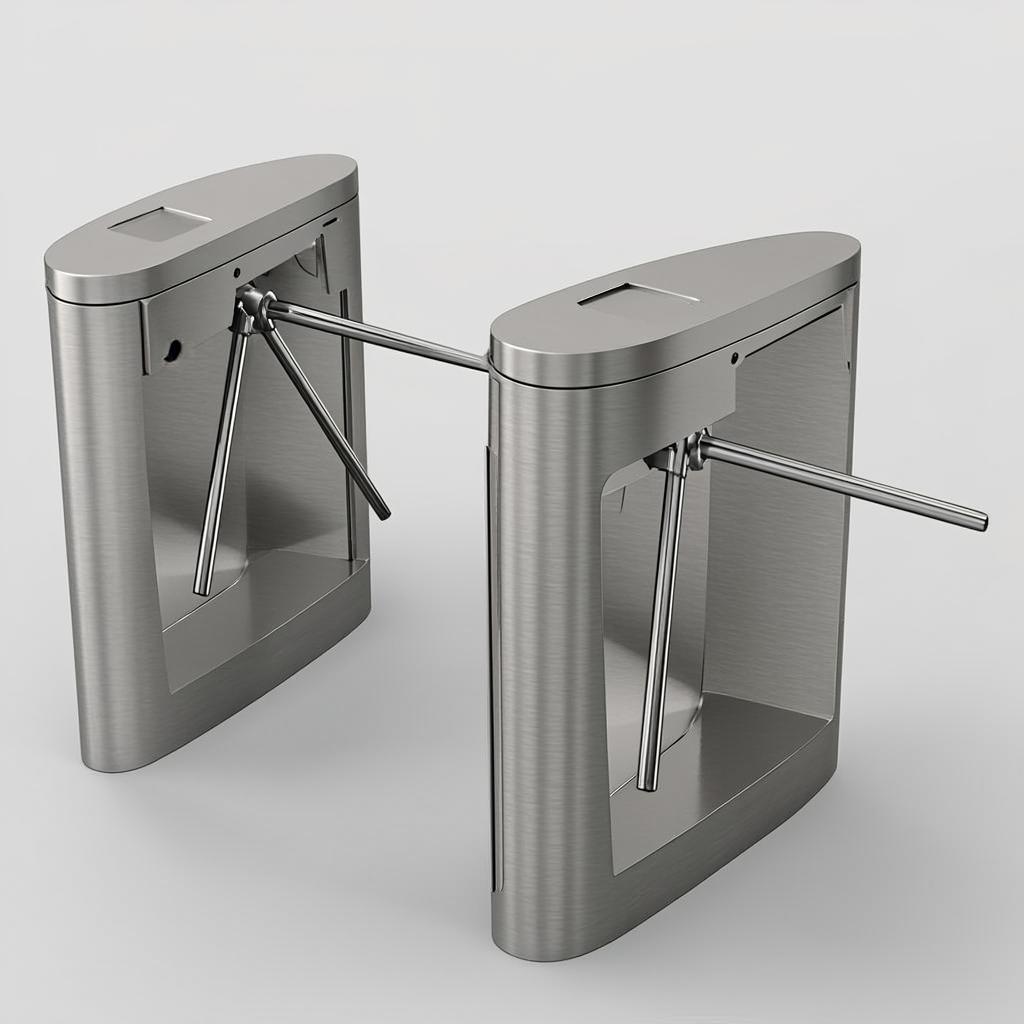

| Electro-Mechanical Tripod Turnstiles (e.g. TS2000 Pro / Mars-T1000) | 25 – 30 persons / min | 500 mm | Mechanical ratchet with optical encoder | Staff entrances, gymnasiums, industrial free-zone checkpoints | AED 1,850 – 4,500 / unit |
| Full-Height Security Turnstiles (e.g. FHT2300 Series) | 15 – 20 persons / min | 650 mm | Heavy-duty interlocking rotating rotors | Data center perimeters, seaport gates, outdoor construction sites | AED 9,500 – 18,500 / unit |
*Hardware estimates exclude structured cabling, sub-floor floorbox trenching, and Civil Defense FACP fire interface relays. Check project-specific scopes.
Anti-Tailgating Sensor Arrays & Optical Beam Logic
The primary engineering failure of low-cost pedestrian barriers is tailgating—where an unauthorized individual closely follows an authorized employee through an open lane. High-performance speed gates overcome this with dense arrays of infrared optical sensors:
- Multi-Zone Infrared Grid: Modern turnstiles like the ZKTeco Mars series utilize between 12 and 24 pairs of infrared sender-receiver diodes running vertically along the cabinet chassis. This establishes a continuous 3D detection curtain from ankle level to chest height.
- Intelligent Directional Logic: The controller distinguishes between standard walking velocity, trailing pedestrians within 30 cm, reverse entry attempts, and rolling luggage. If tailgating is detected, the barrier triggers an audible 85dB alarm and rapidly closes the wings to physically block the intrusion.
- Luggage & Cart Pass-Through Mode: When integrated with visitor management systems, the sensor algorithms allow authorized rolling laptop cases or service carts without triggering false anti-passback violations.
Engineering & Life-Safety Compliance in Dubai
Commercial pedestrian turnstile installations across the UAE must satisfy strict statutory building requirements mandated by local authorities:
- Mandatory Fire Alarm Control Panel (FACP) Interlock: Under UAE Civil Defense life-safety regulations, all turnstiles installed along primary egress routes must incorporate an emergency fail-safe dry contact relay. In the event of a fire alarm or utility power disruption, swing barrier glass panels must swing fully open and tripod arms must drop down automatically within 0.5 seconds without requiring manual reset.
- ADA Wheelchair Passage Provision: UAE building regulations mandate at least one dedicated wide lane (minimum 900 mm clear opening) per turnstile bank to accommodate People of Determination (wheelchairs), bulky deliveries, and emergency first responders.
- Brushed SUS304 vs. Marine-Grade SUS316 Stainless Steel: For inland air-conditioned lobbies in Business Bay or Downtown, SUS304 brushed stainless steel provides excellent durability and aesthetic finish. For coastal properties in Dubai Marina, Jumeirah, or Abu Dhabi Corniche exposed to humid saline air, marine-grade SUS316 chassis prevents pitting and surface oxidation.
- Tempered Glass vs Acrylic Panels: Commercial speed gates utilize 10 mm to 12 mm architectural tempered safety glass that withstands high mechanical impacts while providing clear visibility across the lobby.
Multi-Credential Access Integration: Face, QR & Cards
A physical speed gate is only as effective as the access control credential interface mounted on its top lid. SecureNet Services specializes in turnkey multi-modal credential integration:
AI Face Recognition
Mounting visible-light terminals like the ZKTeco SpeedFace V5L onto turnstile columns enables hands-free authentication in under 0.3 seconds as employees approach, maximizing peak-hour morning throughput.
Dynamic QR Visitor Passes
Building tenants send pre-registered visitors a dynamic time-limited QR code via WhatsApp or email. Visitors scan their smartphones at the turnstile barcode reader for instant, unassisted lobby access without paper badges.
RFID, Mobile BLE & NFC
Flush-mounted multi-technology readers accept Mifare Desfire EV2/EV3, HID iCLASS, and Apple Wallet / Google Wallet virtual credentials with encrypted 128-bit AES handshake security.
Turnkey Installation & Maintenance Services in the UAE
SecureNet Services provides comprehensive turnkey engineering for commercial pedestrian turnstiles and speed gates across Dubai, Abu Dhabi, and Sharjah:
- Lobby traffic flow simulation, CAD architectural layouts, and lane throughput sizing.
- Precision floor core-drilling, concealed stainless cable ducting, and structural sub-floor baseplates.
- Seamless interlock cabling to building Fire Alarm Control Panels (FACP) and central BMS systems.
- Complete supply of genuine manufacturer hardware backed by 1-year and 3-year warranty options.
- Comprehensive Annual Maintenance Contracts (AMC) with guaranteed 4-hour emergency on-site response.
Explore our dedicated Turnstiles & Speed Gates Solutions, browse our Door Access Control Systems, or discover our integrated Biometric Attendance Systems in Dubai.
Frequently Asked Questions
How many turnstile lanes does an office tower need?
As an engineering rule of thumb, one optical speed gate lane handles between 35 and 45 people per minute. For a 20-story commercial tower with 1,200 occupants during the 8:30 AM – 9:00 AM rush, a minimum bank of 3 standard lanes plus 1 wide ADA wheelchair lane is recommended to prevent elevator lobby congestion.
How do speed gates connect to the Dubai Civil Defense fire alarm?
The turnstile master controller connects directly via a supervised dry contact relay loop to the building Fire Alarm Control Panel (FACP). When a fire alarm or building power cut occurs, the power to the barrier holding coils de-energizes immediately, causing the glass wings to swing open in the exit direction.
Can turnstiles be retrofitted onto finished marble or granite lobby floors?
Yes. SecureNet Services utilizes specialized diamond-core drilling with localized dust vacuum containment to anchor turnstile baseplates without fracturing high-end marble or porcelain tiles. Where floor trenching is prohibited by property management, sleek ramped stainless-steel cable trunking platforms are installed.
What is the difference between SUS304 and SUS316 turnstiles?
SUS304 contains 18% chromium and 8% nickel, which is ideal for indoor air-conditioned lobbies. SUS316 contains an additional 2-3% molybdenum, providing superior corrosion resistance against high humidity, coastal fog, and airborne salt spray near Dubai Marina or Abu Dhabi Corniche.
